A pick-head axe is a multifunctional tool that combines cutting, prying, and striking capabilities in a single implement. This versatile design has made it an essential tool in various fields, particularly in firefighting where its combination of features makes it invaluable for emergency situations. In this comprehensive guide, we’ll explore what makes a pick-head axe a unique tool, its classification, various uses, specifications, and why it remains an indispensable part of a firefighter’s arsenal despite technological advancements in the field.
The Classification of Pick-Head Axes
Understanding Tool Classifications
Tools are generally classified based on their primary function, and many specialized tools fall into distinct categories such as:
- Cutting tools – Designed primarily to cut through materials (e.g., saws, knives)
- Striking tools – Used mainly to deliver impact force (e.g., hammers, sledgehammers)
- Prying tools – Created to leverage and separate materials (e.g., crowbars, pry bars)
- Digging tools – Made for excavating soil and other materials (e.g., shovels, spades)
- Combination tools – Incorporating multiple functions in a single implement
The Pick-Head Axe as a Combination Tool
The pick-head axe is definitively classified as a combination tool because it successfully integrates multiple functions that would otherwise require separate tools. Its design includes:
- An axe blade on one side for cutting
- A pointed pick on the opposite side for prying and piercing
- A weighted head that enables effective striking
This multifunctional design allows users to switch between different operations without changing tools, making it especially valuable in time-sensitive situations like firefighting and emergency response.
Anatomical Features of a Pick-Head Axe
Understanding the parts of a pick-head axe helps explain how it functions as a combination tool:
The Head
The head of a pick-head axe consists of two distinct working ends:
- Cutting Edge/Blade – The sharp, axe-like portion used for chopping and cutting
- Pick – The pointed projection opposite the blade used for prying, penetrating, and gripping
Other important parts of the head include:
- Eye – The central opening where the handle is inserted
- Cheek – The sides of the axe head
- Poll – Another term for the pick end
- Handle Guard – A protective extension that runs down part of the handle to protect it from overstrikes
The Handle
The handle (also called a haft) provides leverage and control. Pick-head axe handles are typically:
- 28-36 inches in length
- Made of hickory wood or fiberglass
- Designed with ergonomic grips for secure handling during use
Technical Specifications of Firefighting Pick-Head Axes
Professional firefighting pick-head axes adhere to specific standards and specifications:
| Feature | Typical Specification | Range/Variations |
|---|---|---|
| Head Weight | 6 pounds | 4-8 pounds |
| Overall Head Length | 12 inches | 10-14 inches |
| Pick Length | 5 inches | 2.5-5 inches |
| Handle Length | 36 inches | 28-36 inches |
| Handle Material | Hickory or Fiberglass | Wood, Fiberglass, Composite |
| Steel Hardness | 50-58 HRC (Rockwell) | 45-60 HRC |
| Total Weight | 8-10 pounds | 7-12 pounds |
Materials and Construction
High-quality pick-head axes used in firefighting are constructed with:
- Head Material: High-grade tool steel, heat-treated for durability
- Handle Options:
- Traditional Tennessee hickory wood (provides good shock absorption)
- Fiberglass (more durable, weather-resistant, and typically rated to 1200 lbs of force)
Some premium models, like those from Fire Axe Inc., use manufacturing techniques such as:
- Lost-wax investment casting for precise head formation
- Multiple wedges for securing wooden handles (rather than a single wedge)
- Special heat treatment processes to achieve optimal hardness
- Mirror polished surfaces to reduce friction during cutting
The Pick-Head Axe in Firefighting
The pick-head axe has become an iconic tool in the firefighting profession, where its versatility is particularly valuable.
Historical Context: The Seagrave Axe
The modern firefighting pick-head axe has its roots in the famous “Seagrave Axe,” which was:
- Manufactured by the Collins Company in the early 1900s
- Named after the Seagrave Corporation, which included these axes as standard equipment on their fire engines
- Distinguished by its longer pick (approximately 5 inches) compared to other axes
- Characterized by a distinctive design including a diamond-shaped “axe-lip” where the handle enters the head
Today, many professional-grade pick-head axes are modeled after this classic design, with some manufacturers like Fire Axe Inc. producing modern versions of the Seagrave Axe with updated materials and manufacturing techniques.
Applications in Structural Firefighting
The pick-head axe serves multiple critical functions in structural firefighting:
Forcible Entry
- Breaking through doors, windows, and walls to gain access to fire-affected areas
- Puncturing materials to create openings
- Working in conjunction with other tools (particularly the Halligan bar) for more effective entry
Ventilation Operations
- Creating holes in roofs to release heat and smoke
- Breaking through roof materials including shingles, wood, and underlayment
- Providing anchor points on pitched roofs for firefighter safety
Overhaul
- Opening walls, ceilings, and floors to check for fire extension
- Breaking apart smoldering materials to ensure complete extinguishment
- Removing damaged materials to prevent rekindle
Comparing Pick-Head and Flat-Head Axes
Firefighters typically use two main types of axes: pick-head and flat-head. Each has distinct advantages:
| Feature | Pick-Head Axe | Flat-Head Axe |
|---|---|---|
| Head Design | Cutting blade with pointed pick | Cutting blade with flat hammer surface |
| Primary Use | Versatile tool for cutting, prying, anchoring | Cutting and striking tool, often paired with Halligan bar |
| Weight | Typically 6 pounds | Often 6-8 pounds |
| Best Application | Roof operations, ventilation, creating anchor points | Forcible entry, especially as part of “the irons” |
| Secondary Function | Anchoring on pitched roofs | Striking tool for driving Halligan bar |

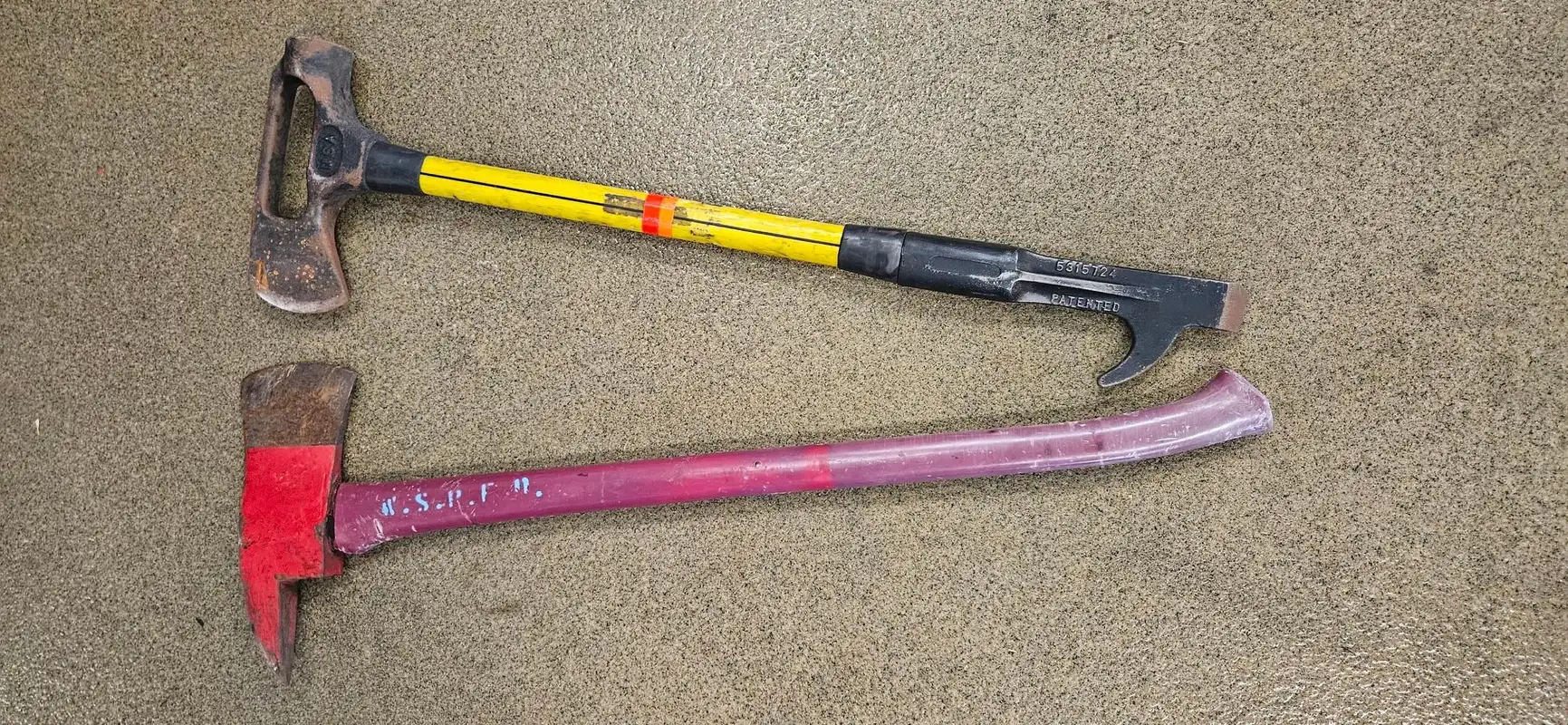

The Irons: Combining Tools for Effectiveness
In structural firefighting, the flat-head axe is often paired with a Halligan bar to create what’s known as “the irons” or a “married set.” While pick-head axes can be used in this combination, the flat hammerhead of the flat-head axe makes it the preferred choice for this application as it provides a better striking surface.
Practical Applications and Techniques
Firefighting Techniques with the Pick-Head Axe
Firefighters employ specific techniques when using pick-head axes:
Roof Operations
- Anchoring – Driving the pick into the roof for stability on pitched surfaces
- Cutting – Using the blade to cut through roofing materials
- Sounding – Striking the roof to assess structural integrity
Forcible Entry
- Puncturing – Using the pick to create initial openings
- Prying – Leveraging the pick to widen openings
- Cutting – Employing the blade to cut through barriers
Safe Carrying Techniques
For safety during transport, firefighters carry pick-head axes with specific methods:
- Pick pointed upward
- Blade facing away from the body or covered with a hand
- For pick-head axes specifically, sometimes carried with the pick up, blade under the armpit, with the free hand holding the pick point
Maintenance and Care
To maintain the effectiveness and safety of pick-head axes:
- Edge Maintenance
- Sharpen with a file rather than a grinding wheel (which can affect steel temper)
- Check regularly for chips, cracks, or damage
- Handle Care
- For wooden handles: Clean, sand if splintered, apply boiled linseed oil
- For fiberglass handles: Check for cracks or damage, ensure tight connection to head
- Storage
- Store in a dry place to prevent rust and handle degradation
- Consider protective covers for the blade when not in use
Pick-Head Axes in Other Industries
While especially associated with firefighting, pick-head axes have applications in other fields:
Construction
- Breaking through materials during demolition
- Prying apart structural elements
- Creating starter holes for other tools
Forestry and Land Management
- Clearing brush and small trees
- Breaking up soil
- Removing obstacles on trails
Emergency Response and Rescue
- Vehicle extrication
- Disaster response
- Creating access points in compromised structures
Related Tools and Variants
Similar Combination Tools
Several tools share characteristics with the pick-head axe:
Pulaski Axe
A specialized forestry and wildland firefighting tool combining:
- An axe blade for cutting
- An adze (horizontally oriented digging blade) for trenching and digging
Mattock
A digging tool that combines:
- A pick or axe blade
- An adze for digging and grubbing
Distinguishing Between Similar Tools
While sometimes confused with other tools, the pick-head axe has distinct features:
| Tool | Primary Classification | Key Features |
|---|---|---|
| Pick-Head Axe | Combination | Axe blade + pointed pick; primarily for cutting and prying |
| Pickaxe | Digging/Prying | T-shaped tool with pick and chisel/blade; primarily for breaking ground |
| Pulaski | Combination | Axe blade + adze; primarily for forestry and wildland firefighting |
| Mattock | Digging | Pick or axe + adze; primarily for digging in hard soil |
Choosing the Right Pick-Head Axe
When selecting a pick-head axe, consider the following factors:
Key Considerations
- Intended Use
- Structural firefighting requires different features than forestry or construction
- Professional applications demand higher quality than occasional use
- Weight and Balance
- Heavier heads provide more striking force but increase user fatigue
- Balance affects control and precision during use
- Handle Material and Length
- Wooden handles absorb shock better but require more maintenance
- Fiberglass handles offer durability and weather resistance
- Longer handles provide more leverage but may be unwieldy in confined spaces
- Quality and Construction
- Heat treatment affects durability and edge retention
- Handle attachment methods impact safety and longevity
- Overall construction quality determines performance under stress
Professional vs. General-Use Models
Professional firefighting pick-head axes differ from general-use models in several ways:
| Feature | Professional Firefighting Model | General-Use Model |
|---|---|---|
| Quality | Higher-grade steel, precise heat treatment | Standard construction |
| Weight | Standardized (typically 6 lbs head) | Variable |
| Features | Handle guards, specialized pick design | Basic design |
| Cost | $150-300+ | $50-150 |
| Standards | May meet NFPA or department specifications | No specific standards |
The Future of Pick-Head Axes
Despite technological advancements in firefighting and other fields, the pick-head axe remains relevant due to its:
- Reliability (no motors, batteries, or fuel to fail)
- Versatility for multiple applications
- Effectiveness in situations where power tools are impractical
- Historical and cultural significance in firefighting
Innovations continue in materials, manufacturing techniques, and ergonomics, but the basic design has proven so effective that radical changes are unnecessary.
Conclusion
The pick-head axe is definitively classified as a combination tool, integrating cutting, prying, and striking functions in a single implement. Its enduring presence in firefighting and other fields testifies to the effectiveness of its design. Despite being one of the oldest tools in the firefighter’s arsenal, it remains indispensable for its versatility, reliability, and functionality in emergency situations.
Whether used for forcible entry, ventilation, overhaul, or as an anchor point on pitched roofs, the pick-head axe exemplifies how thoughtful tool design can create an implement greater than the sum of its parts. Understanding its classification, features, and applications helps appreciate why this tool has earned its place as both a practical necessity and a symbol of the firefighting profession.
Frequently Asked Questions
What is the main difference between a pick-head axe and a flat-head axe?
The main difference lies in the design of the poll (back) of the axe head. A pick-head axe features a pointed pick opposite the cutting blade, while a flat-head axe has a flat, hammer-like surface. This difference makes pick-head axes better for prying and penetrating materials, while flat-head axes excel as striking tools, particularly when paired with a Halligan bar for forcible entry.
Why do firefighters prefer different types of axes for different roles?
Different firefighting roles require specialized tools. Engine company firefighters often prefer flat-head axes for forcible entry when paired with Halligan bars, while ladder company firefighters typically choose pick-head axes for roof operations because the pick can be used as an anchor point on pitched roofs and for creating ventilation holes. The tool selection is based on the primary tasks each firefighting position typically performs.
How do I properly maintain a pick-head axe?
Proper maintenance includes regular cleaning after use, checking for damage, maintaining the edge with a file (not a grinding wheel), and proper handle care. For wooden handles, periodically sand smooth and apply boiled linseed oil. For fiberglass handles, check for cracks or damage. Always store in a dry location to prevent rust and handle deterioration, and ensure the head remains securely attached to the handle.
Can a pick-head axe be used effectively outside of firefighting?
Yes, pick-head axes are versatile tools useful in construction, demolition, forestry, emergency rescue, and other fields. The combination of cutting edge and pick makes them valuable wherever materials need to be cut and pried apart. While they may not be as specialized as tools designed specifically for these other applications, their versatility makes them useful in many situations requiring both cutting and prying capabilities.
What makes a high-quality pick-head axe different from a budget model?
Quality pick-head axes distinguish themselves through superior materials (high-grade tool steel), proper heat treatment (typically to 50-58 HRC hardness), balanced design, secure handle attachment methods (multiple wedges or high-strength epoxy), protective features like handle guards, and overall craftsmanship. Professional models, such as those modeled after the Seagrave Axe, often feature longer picks (around 5 inches) with squared cross-sections for better penetration and grip when used for prying or as anchor points.
